MSB Discrete DAC

$12,500.00
Model Number: MSB-DISC-DAC
With two prime DACs, we yield an unprecedented level of detail, reproducing the musicality, soundstage, and texture of an original performance, bringing the artist to you.
Available in matte silver or matte black anodize.

If you have questions or would like to place an order, please contact our MSB experts.

(CA) 714-630-4100 - (TX) 817-320-3145
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
A one-time price of $12,500.00 will be added to your order.
Manufacturer: MSB TECHNOLOGY
Facebook
X
Email
Pinterest
  • Description
  • Specifications
  • Customer Reviews (0)

MSB Discrete DAC



With two prime DACs, we yield an unprecedented level of detail, reproducing the musicality, soundstage, and texture of an original performance, bringing the artist to you. A fully balanced, ultra-high precision, discrete ladder DAC architecture ensures each note tells a story. Additionally, MSB’s robust in-house design enables the finest quality playback of PCM and native DSD, while our low impedance circuitry drives your amplification directly without adding coloration or buffering noise. The end result is a digital experience defying expectations.

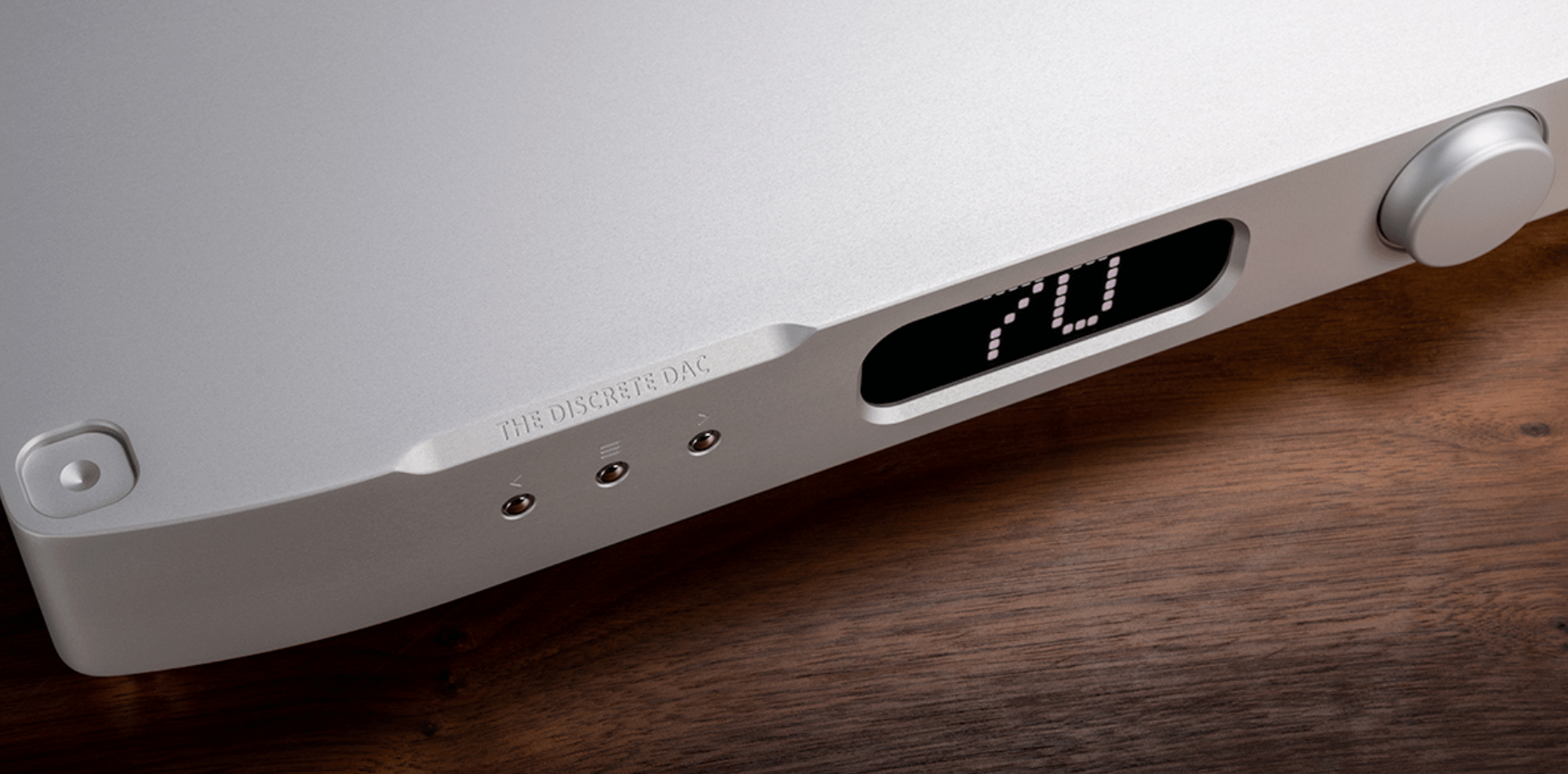

Equipped with high-visibility and a wide viewing angle, the display is both easy-to-read and stunning, exhibiting our love for intuitive features.  The LED display, slaved to the audio clock, is refreshed between data processing to drastically reduce electrical interference. The in-house discrete design is then constructed into its own shielded CNC pocket for optimal isolation. Sit back and be immersed.

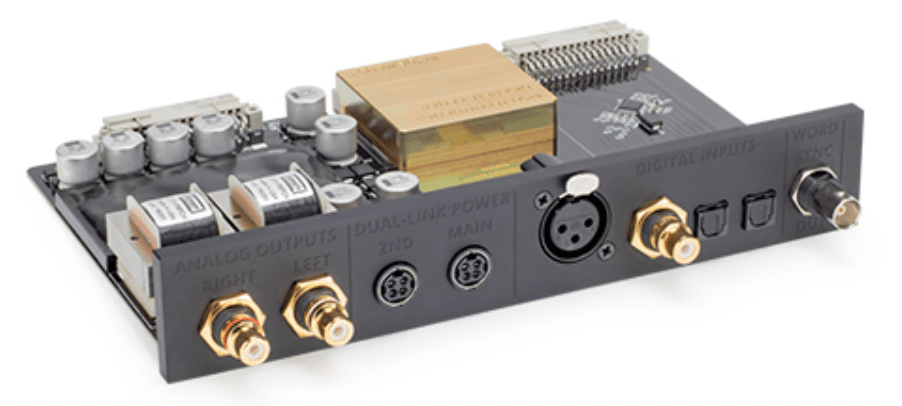

A modular I/O card keeps even the discrete DAC flexible, repairable, and upgradeable.  Along with an integrated clock, changing this card allows switching between single-ended and balanced outputs.

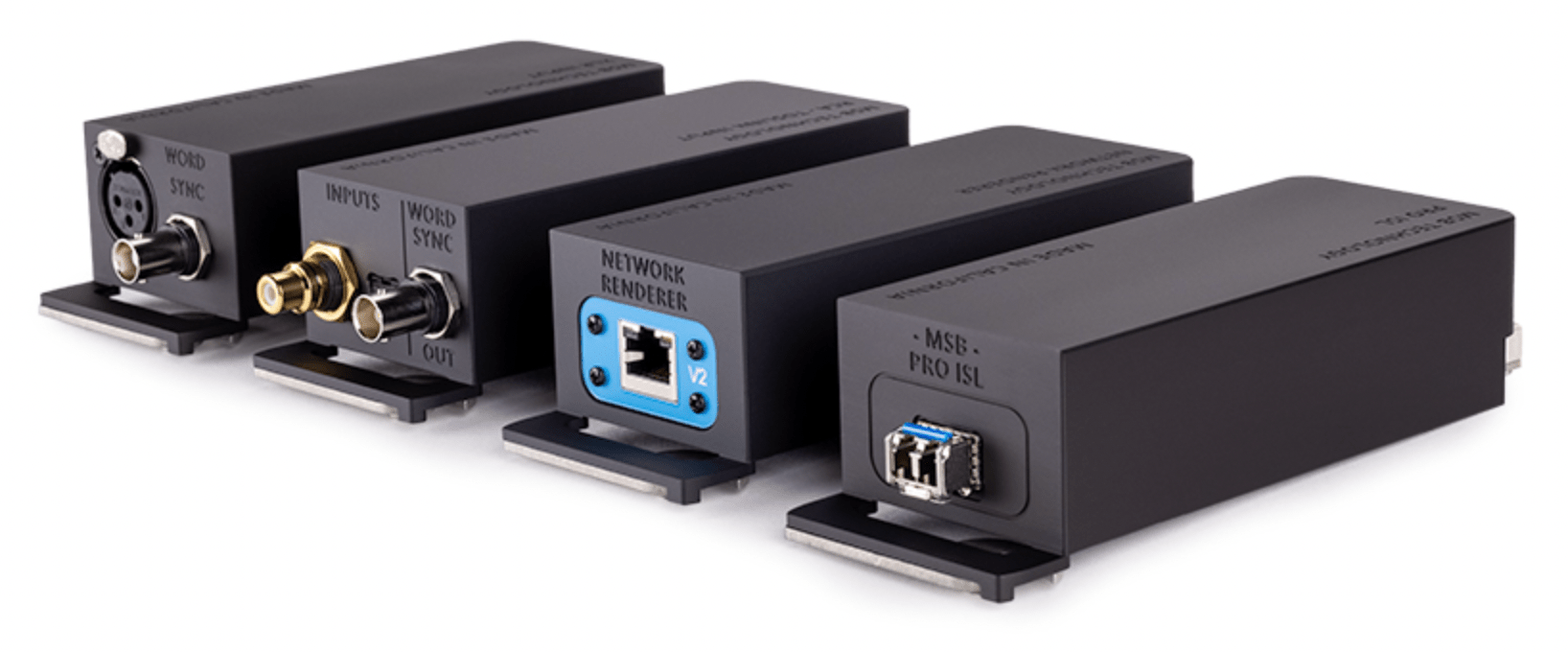

MSB thrives off the innovation required to meet consumer demands. We’re constantly improving digital input modules to stay at the forefront of the high-end audio industry, ensuring you’re always equipped with the most current digital file formats and interfaces. Focusing on our network renderer and USB input, your audio tech will be on the cutting edge. Put simply, your DAC is ready for the future.

Superior conversion begins with clean and stable low-noise power. The Discrete Power Supply feeds the DAC with dual low-noise power streams that are linear and independent. That’s not all—the CNC unibody aluminum chassis provides the discrete power supply with optimal thermal performance and an elegant design aesthetic. The DAC comes equipped with a single power supply, but can be augmented with a second discrete power supply to enable optimized power isolation between all major components.

Elegant yet commanding, our finishes are available in a matte silver or matte black anodize.  Our products include our in-house designed viton feet, but any audiophile M6X1 foot can be installed to personalize your system. Paired with performance increases, our modular design ethos increases flexibility for future updates and product support, guaranteeing a long-term product investment. As you pursue higher levels of playback, an MSB upgrade path is always available to help drive your own desire for innovation. Whether it’s a software update or a leading-edge modular component, we’re here to help the most valued aspect of MSB—our customers.

MSRP: $12,000 / Available in matte silver or matte black.



The Discrete DAC

Supported Formats (Input dependent)44.1kHz to 3,072kHz PCM up to 32 bits
1xDSD, 2xDSD, 4xDSD, 8xDSD
Supports DSD via DoP on all inputs

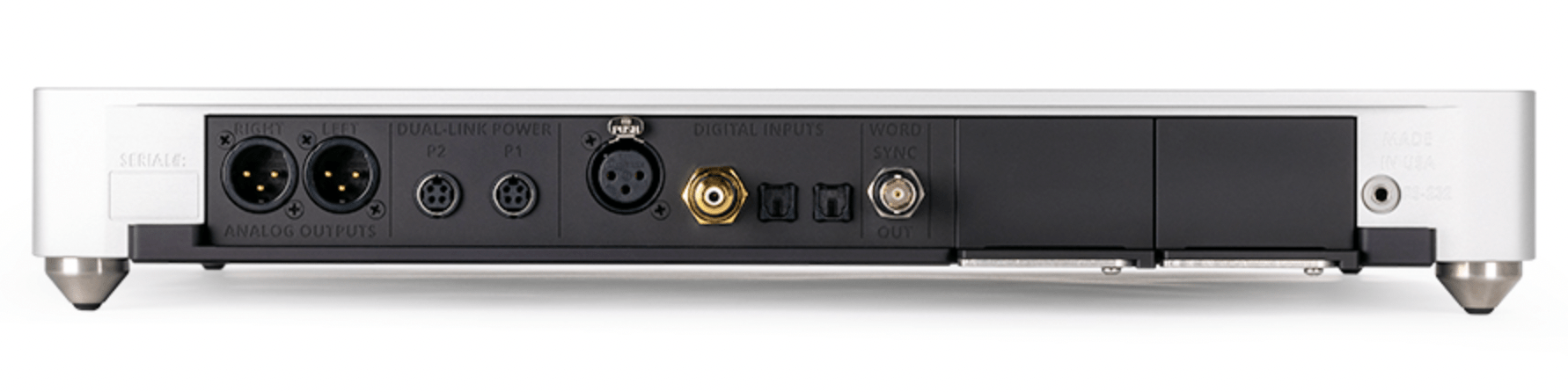

Digital Inputs1x RCA Coaxial
1x XLR
1x Word-Sync
2x Toslink
2x Advanced isolated input module slots
XLR Analog Outputs3.57Vrms Maximum
 300Ω Balanced
 Galvanically isolated
Volume Control1dB steps (Range 0 - 106).
Volume Control can be disabled in the menu.
DisplayDiscrete LED audio clock synchronous display
Adjustable brightness and auto-off feature
ControlsIsolated RS-232
IR Remote
Front panel interface
Power Consumption35 Watts with fully configured Discrete DAC
Chassis Dimensions
Width:17 in (432 mm)
Depth:12 in (305 mm)
Chassis Height (Without Feet):2 in (51 mm)
Stack height:2.65 in (68 mm)
Weight:18 lbs (8.2 kg)
Product Feet:M6X1 Thread
Shipping Dimensions
Width:22 in (558.8 mm)
Depth:18 in (457.2 mm)
Height:7 in (177.8 mm)
Weight:27 lbs (12.3 kg)
Included Accessories
User Manual
MSB Remote
USB charging cable
Dual-link power splitter
4X Rubber feet
4X Plastic foot inserts

The Discrete Supply

AC Voltage100V (Fixed)
120/240V (Auto switching)
Power Consumption45 Watts with fully configured Premier DAC
Chassis Dimensions
Width:8.25 in (209.6 mm)
Depth:6 in (152.4 mm)
Chassis Height (Without Feet):2 in (50.8 mm)
Stack height:2.65 in (67.3 mm)
Weight:5.5 lbs (2.5 kg)
Product Feet:M6X1 Thread
Shipping Dimensions
Width:17 in (431.8 mm)
Depth:11 in (279.4 mm)
Height:5 in (127 mm)
Weight:8 lbs (3.7 kg)
Included Accessories
IEC power cord
Dual-link power cable
