Ideon Audio Absolute Time
The Ideon Audio Absolute Time was conceived, designed, and manufactured as an ultra hi-end audiophile device, re-clocking, re-energizing, and re-driving the digital signal with correction at both the input and output stages. It improves the digital signal quality to what is currently an absolute level.
KEY FEATURES
- Separate, electrically stable USB and coaxial (SPDIF) inputs
- Superlatively sized power bank, hand-made audiophile transformer
- Linear, triple-stage, ultra-low noise, stabilized, power supply, with separate lines to different circuits
- Low esr, audiophile (silk) capacitors throughout
- Proprietary, femto clock re-clocking circuit on an upgradable platform
- Phase correct restitution and vanishingly low jitter
- Proprietary, zero-noise rectification bridge eliminates diode-rectification noise
- USB output: ultra-stabilized with signal boost, high power (2.5S / 5V rail), easily drives any load
- SPDIF output: proprietary ultra-low-noise, jitter attenuating PLL / supports 12.8MHz master clock
Addressing digital playback challenges.
Conceived and designed in-house, the Ideon Audio Triple Distillation USB input comprises a proprietary three-stage noise eradication circuit that eliminates digital noise from the input signal. Figuratively speaking, we have declared war on linear & non-linear distortion and noise!
Ideon Audio’s proprietary design
Utilizing expertise obtained through our proprietary 3R re-clocking circuits, our Clients’ feedback and suggestions, and latest technology, the absolute Time was designed to address signal degradation issues in a definitive manner. Superlative power and constant correction are legion here too.

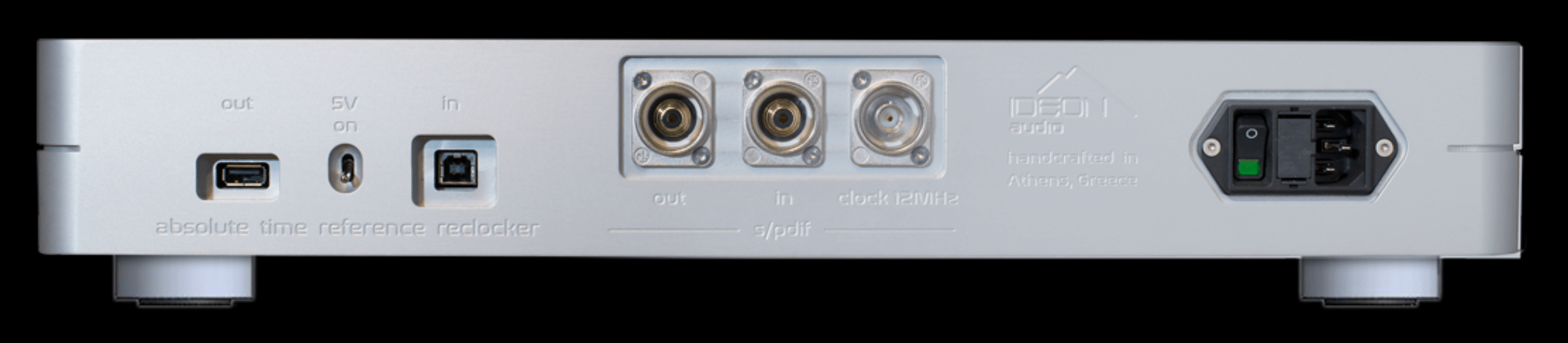

Dual Input and Outputs (USB & SPDIF)
The Absolute Time incorporates separate USB and SPDIF inputs and outputs — a boon for CD collectors for the enjoyment of their music!
MSRP: $12,000 - Full Size / $10,000 - Non Full Size
Specifications
| USB | type 2.0 hi speed: 480Mb/sec |
| SPDIF SAMPLE RATE | 32 -192 re-clocking |
| PCM, DSD | Full Compatibility |
| OPERATING SYSTEM SEAMLESS OPERATION | With USB Stack Support (no special drivers required) |
| USB POWER RAIL | Switchable 5V on/offs |
| POWER SUPPLY | Triple ultra-low noise linear power supply |
| OUTPUT USB | 2.5A ultra low noise 5 volt USB |
| DISPLAY | Custom discrete LED audio clock synchronous display |
| OUTPUT SPDIF | Buffered |
| DIMENSIONS (W X H X D) | 470 x 175 x 110 mm ( (18.5 x 6.9 x 4.3 in) |
| WEIGHT | 15 kg (~ 33 lbs) |
| FINISH | Anodized aluminum, silver/black + additional options upon request |
