MSB M500 MONO AMPLIFIER (PR)

$118,500.00
Model Number: M500

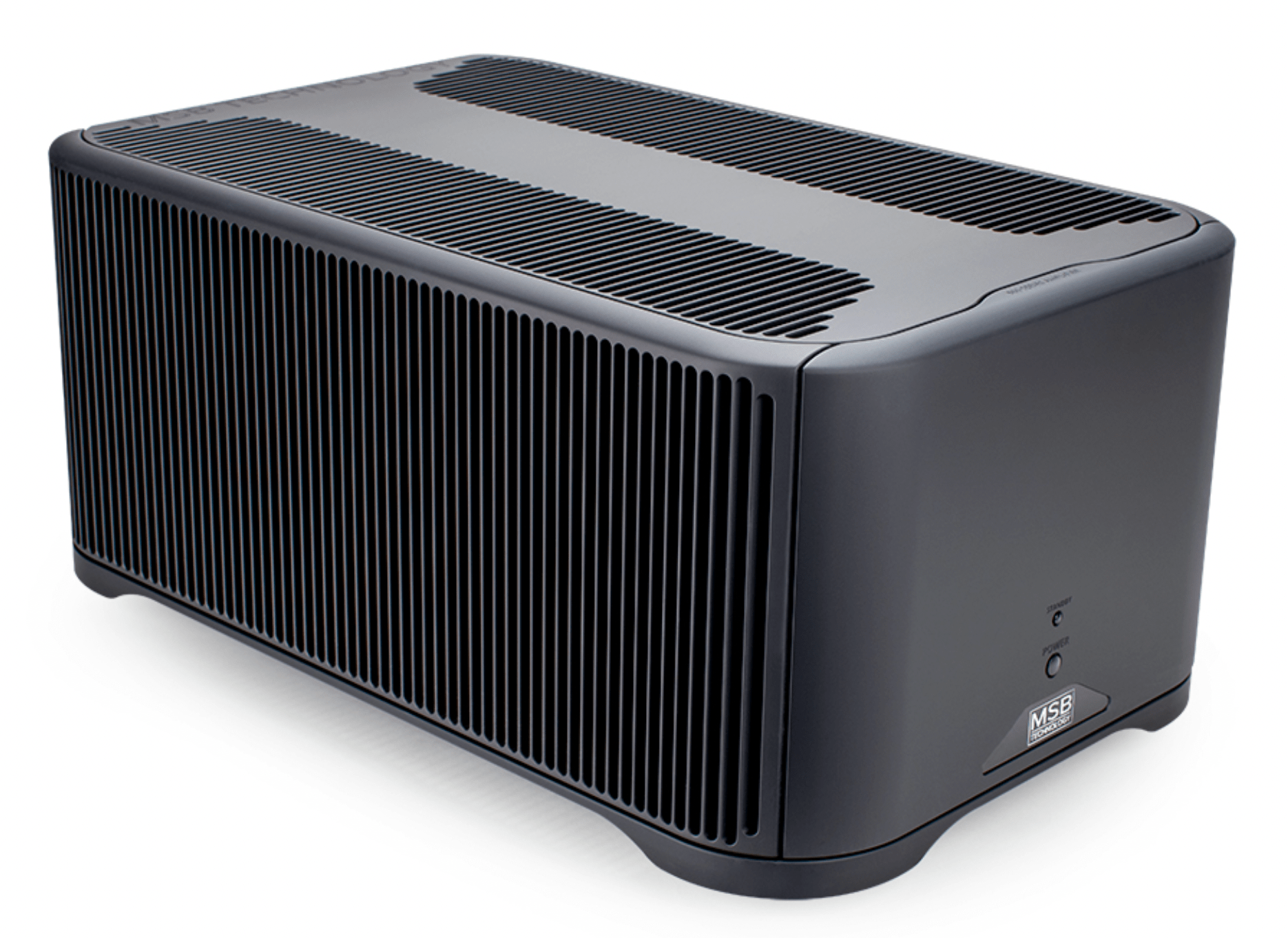

The world’s leading DACs needed an amplifier to match so we engineered a clean slate design that could meet our DAC’s ultra high dynamic range head on. With the amplifier’s architecture optimized in critical areas, audio performance, longevity, and an ability to drive any speaker became our principal design parameters. We redefined the idea of what an amplifier can be, embedding the M500 with a fully modular design alongside a 1.0 Farad Power Core, a matched impedance input stage and an all billet CNC case. The finest amplifier we’ve ever created, the 500 series redefines excellence and sets a new bar in the industry.
With custom low-noise high-current toroidal transformers and rugged high-current output buffers, the M500 provides a transparent, holographic listening experience that’s completely fatigue free.
Available in matte silver and matte black anodize.

If you have questions or would like to place an order, please contact our MSB experts.

(CA) 714-630-4100 - (TX) 817-320-3145

Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
A one-time price of $118,500.00 will be added to your order.
Manufacturer: MSB TECHNOLOGY
Facebook
Twitter
Email
Pinterest
  • Description
  • Specifications
  • Customer Reviews (0)

The world’s leading DACs needed an amplifier to match so we engineered a clean slate design that could meet our DAC’s ultra high dynamic range head on. With the amplifier’s architecture optimized in critical areas, audio performance, longevity, and an ability to drive any speaker became our principal design parameters. We redefined the idea of what an amplifier can be, embedding the M500 with a fully modular design alongside a 1.0 Farad Power Core, a matched impedance input stage and an all billet CNC case. The finest amplifier we’ve ever created, the 500 series redefines excellence and sets a new bar in the industry.

The M500 features a discrete design featuring a class A matched impedance input stage. This result is a product with minimized signal reflections, input noise, and distortion while also maximizing power transfer and dynamic range in a zero negative feedback design. With custom low-noise high-current toroidal transformers and rugged high-current output buffers, the M500 provides a transparent, holographic listening experience that’s completely fatigue free. All components were meticulously chosen for their sonic performance and longevity, ensuring your amplifier is built to last.

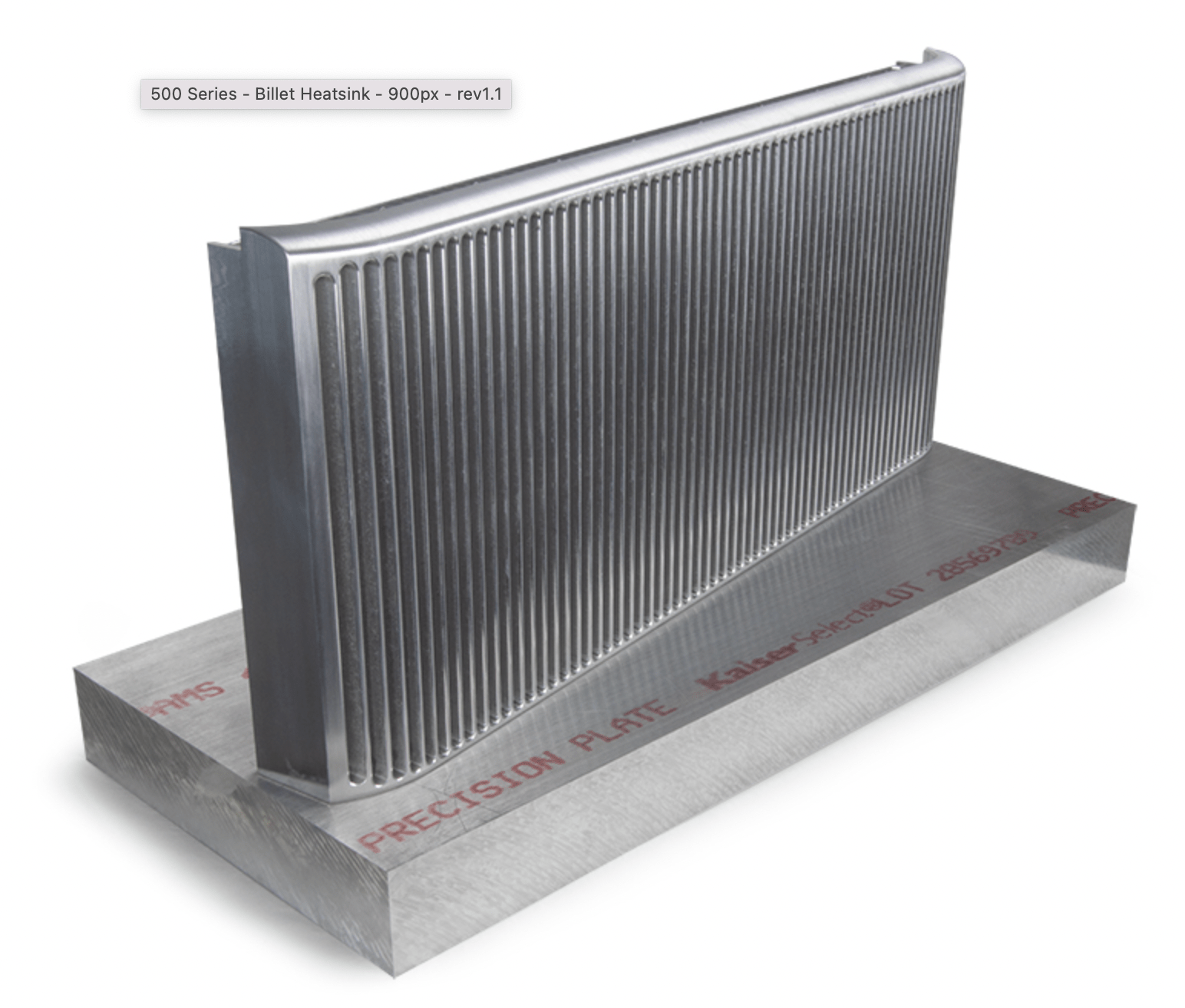

The 500 series amplifier is designed and lovingly crafted in our factory based in California. Each of the heatsinks start out as a 51lb aluminum block before sixty percent is removed over eight hours of machining, resulting in 17.5 lbs of refined aluminum. This high efficiency design provides a surface area of over 10,000 in² per amplifier. What’s more–the fin thickness is slightly varied to help reduce resonances and ringing in the heatsinks, while multiple high power heat pipes distribute heat evenly for optimal thermal and electrical performance.

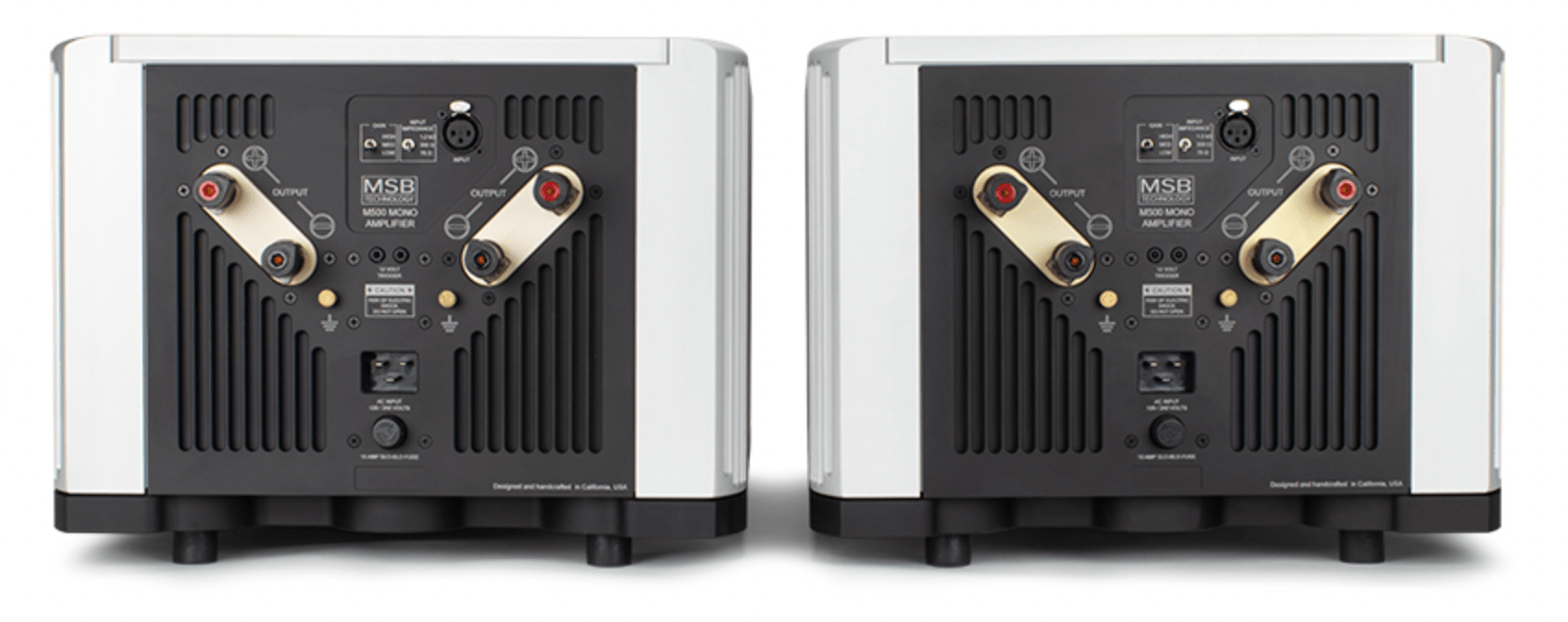

The M500 is equipped with a simple, user-friendly control interface. Intuitive push buttons, remote commands, and the 12V triggers guarantee  control over power and standby modes. Further control of amplifier “power on” timers and soft-start circuits allow a multi-amplifier system to power up without putting strain on your listening room’s electrical system. Intuitively oriented speaker lugs direct your speaker cables in the right direction without strain. Multiple ground posts enable EMI reduction strategies, including shielded cables and system star grounds. A 20 amp IEC connection is provided for high current delivery, while three gain settings optimize dynamic range for any speaker. Elegant yet commanding, our finishes are available in a matte silver or matte black anodize.  Our products include our in-house designed viton feet, but any audiophile M6X1 foot can be installed to personalize your system.

MSRP: $118,500 (PR) Available in matte silver or matte black anodize



The M500 Mono Amplifier

(per mono amplifier)
Static Power Consumption150 Watts On
Standby power less than 2 watts
Operating Voltage Range120/240V (Auto switching)
100V (Fixed)
Fuse1/4"x1-1/4" 15A 250V Slow Blow
Input1x XLR Input
Output2x Binding post set per channel
ControlsGain switch
Input Impedance Switch
On/Off Button
Standby button
Display Dimmer
12V Mode Switch
2x MSB 12V trigger port
Continuous Power Output (8Ω) < 1% distortion500 W
Continuous Power Output (4Ω) < 1% distortion1000 W

Frequency Response (20 to 20kHz)±0.025dB
Signal to Noise (20 to 22kHz)>136dB (>140dBA)
Equivalent Input Noise (22kHz BW)0.5μV

Low Gain (75Ω source impedance)16.4dB
Medium Gain (75Ω source impedance)22.4dB
High Gain (75Ω source impedance)28.4dB
Input Impedance (User Selectable)75Ω / 300Ω / 1.2kΩ
Output Impedance (20 to 20kHz)0.07Ω
Topology
Input/Gain Stage- Class-A
- Quad balanced
- Impedance matched
- Fully discrete
- Independent power and transformer
Output Stage- Class-AB
- Balanced
- High bias
- Current gain only
Chassis Dimensions (Per Mono Block)
Width:15 in (381 mm)
Depth:23.25 in (590 mm)
Height:10.5 in (267 mm) Without Feet
11 in (279 mm) With Feet
Weight:135 lbs (61.25 kg)
Product Feet:M6X1 Thread
3 or 4 Foot Configuration
Shipping Dimensions (Per Mono Block)
Width:23 in (585 mm)
Depth:35 in (889 mm)
Height:21 in (534 mm)
Weight:194 lbs (88 kg)
Included Accessories
User Manual
IEC C19 Power Cord
