VAC PHI 170iQ Stereo / Monoblock Amplifier

Name: VAC PHI 170iQ Stereo / Monoblock Amplifier
Brand: VAC
SKU: VAC-PHI-170iQ-MONOBLOCK-AMPLIFIER
Price: 9900.00 USD
Availability: InStock

0 Reviews

$9,900.00

VAC PHI 170iQ Stereo / Monoblock Amplifier

A one-time price of $9,900.00 will be added to your order.

Categories: VAC AMPLIFIERS, AMPLIFIERS

Manufacturer: VAC

Description
Specifications
Customer Reviews (0)

VAC PHI 170iQ Stereo / Monoblock Amplifier

At first glance, the new VAC Phi 170 may seem like a typical 85 watt per channel stereo amplifier. Sure, it can be transformed into a 170 watt mono block at the flick of a switch, and it has a fully balanced input mode, but the real breakthrough is inside, for the Phi 170 is equipped with the revolutionary patented* VAC iQ Continuous Automatic Bias System.

The VAC iQ is the only system able to hold each output tube’s true underlying idle current perfectly steady at all times, no matter how much you turn up the volume. Say goodbye to manual tweaking, bias drift, thermal tracking effects, dynamic load-line shift, runaway tubes, and blown fuses. Say hello to more detail, increased extension and punch, lower noise, less distortion, and high reliability. It will even tell you when it's time to replace weak tubes.

The Phi 170 with iQ System. Superior sound. Only from VAC.

MSRP: $9900 / EA

SPECIFICATIONS

Type	Vacuum tube power amplifier with transformer coupled output
Features	VAC iQ Continuous Automatic Bias System ™ Class A1 triode input & driver stages Direct coupled input & driver stages Low feedback design (6 dB) 12 volt trigger Detachable power cord
Switch Settings	Fully balanced or single-ended input Stereo or mono operation
Power Output	85 watts/channel stereo continuous 170 watts mono continuous
Speaker Matching Taps	1-2 ohms, 2-4 ohms, 4-8 ohms
Frequency Response	4 Hz to 71 kHz, +0/-3 dB
Full Power Bandwidth	15 Hz to 63 kHz, +0/-3 dB
Residual Noise	Typically > 95 dB below rated output
Input Impedance	200k Ohms, Stereo, Balanced 100k Ohms, Stereo, Single Ended 100k Ohms, mono, Balanced 50k Ohms, mono, Single Ended
Gain	30 dB, Stereo, Balanced 33 dB, Stereo, Single Ended 31 dB, Mono, Balanced 34 dB, Mono, Single Ended
Output Polarity	Non-inverting. Balanced input is Pin 2 positive.
Tube Complement	4 x type 6SN7 4 x type KT88 Compatible with KT120 Compatible with KT150
Operating Voltages	Available factory set for 100, 120, 220, or 230/240 volt operation

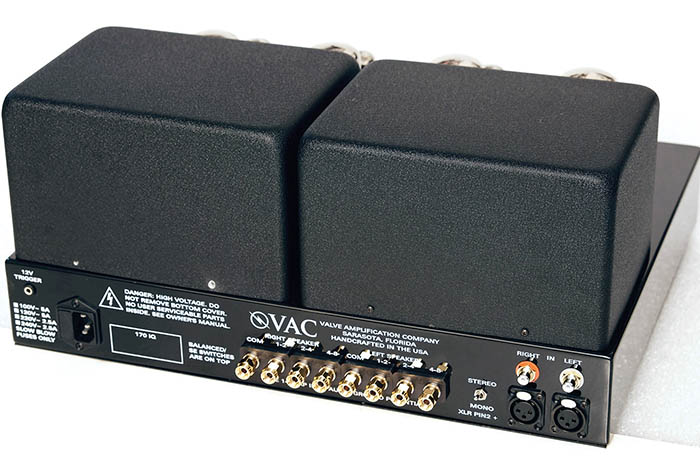

Connectors	Cardas rhodium RCA jacks Neutrik XLR jacks Cardas rhodium binding posts
Dimensions	17.8" W x 14.2" D x 8.5" H 452 mm x 361 mm x 216 mm Excluding connectors
Weight	68 lbs. 31 kg
Origin	Designed & manufactured exclusively in the United States of America by VAC

*Specifications subject to change without notice.
